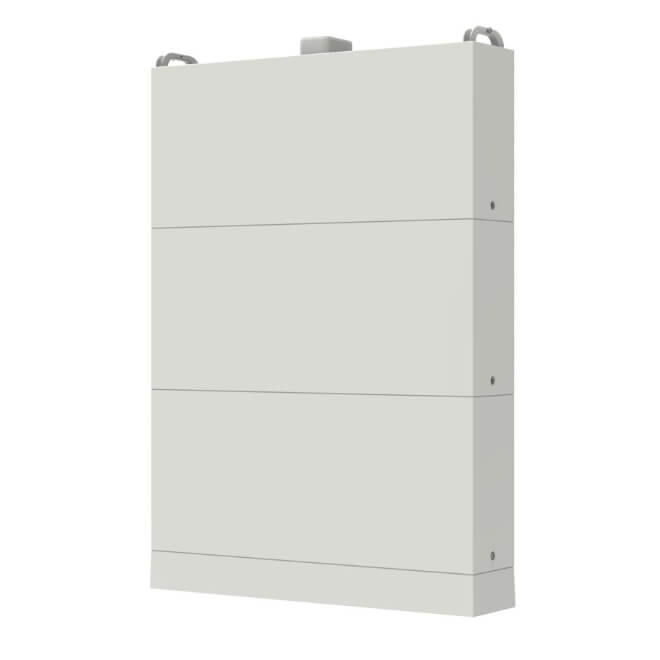

SolaX HS50E-BAT TP-HS50E 5.1kWh 80-800V IP66 HV Battery Module 50A
Product Code: HS50E-BAT
Brand:
SolaX
Colour: White
SolaX HS50E-BAT TP-HS50E 5.1kWh 80-800V IP66 HV Battery Module 50A
SolaX HS50E-BAT (TP-HS50E) is a high voltage battery module for the SolaX IES energy storage system, providing 5.1kWh (50Ah) rated energy with 4.6kWh usable energy, 3kW rated charge/discharge power and 5.1kW max power across an 80€“800V d.c. battery operating range, with IP66 protection and up to 50 d.c. A max charge/discharge current; it is BMS controlled using the TBMS-MCS0800E with CAN/RS485 communications and certifications including CE, RCM and TUV (IEC62619), designed for stack installation as part of solar PV and battery storage builds where controlled self-consumption and EV charging load planning are required.Get a personalised quote for your renewable energy needs by contacting us or requesting a quote here. Choose Phase Renewables for tailored solutions, competitive pricing, and expert guidance in building a sustainable future.
Product Downloads
KEY FEATURES
- Rated charge/discharge power: 3kW
- Max charge/discharge power: 5.1kW
- 80800V d.c. battery operating range (IES system)
- IP66
- 50 d.c. A max charge/discharge current
- Rated energy: 5.1kWh (50Ah)
- Usable energy: 4.6kWh
- Stackable battery module for SolaX IES system (requires TBMS-MCS0800E)
- Cycle life: >6000 cycles
- CE, RCM, TUV (IEC62619), RoHS, REACH
- Colour / Finish White
Additional Information
- Dimensions (H x W x D) 318 x 730 x 150 (mm)
